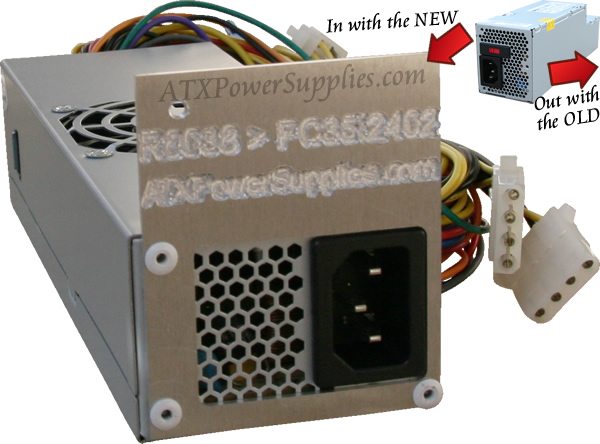

Dell Optiplex Power Supply N220P-01 R8038 NPS-220BB A

Product Number R8038

Dell Optiplex Power Supply N220P-01 R8038 NPS-220BB A

$89.99
Please note this power supply is currently out of stock. You are welcome to place an order and be one of the first to receive these when replenishment arrives. We hope to have these back in stock by 3/15/10

The power supply above comes with the connectors shown. If you need additional connectors you may add from the list below:

view image
view image
view image
view image
view image
view image


Having trouble making a selection? See our article on Choosing a Power Supply.

Key Features:

  1. Corresponds to Dell part number R8038
  2. Used in Dell Optiplex GX520 and GX620 computers

Product Description:

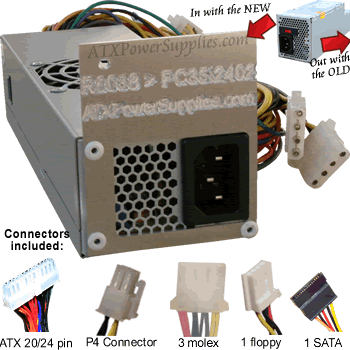

Leave it up to Dell to make yet another odd ball power supply. This 220 watt Dell replacement power supply fits inside several unique Dell models like the GX520 tower and the GX620 SFF (Small Form Factor). This power supply has a 24 pin atx connector, a P4 connector, and one sata connector. Take a look at the cross reference list below to properly match this power supply with your current Dell power supply.

Technical Specs:

  • 2.5" Wide
  • 2.875" Tall
  • 8.25" Deep
  • One 24 Pin ATX Connector
  • One P4 Connector
  • One SATA Connector
Output Max. Load
+5VFP 1.0A
-12V 0.5A
+12V 12A
+5V 17A
+3.3V 3.0A

R8038
Replaces the following computer power supplies:
Dell HP-L2206F3P
Dell YD358
Dell N275P-00
Dell K8964
Dell NPS275BB A
Dell Dimension 5150C
Dell HP-L2206F3P LF
Dell HP-L2206F3P1
Dell N8373
Dell N8368
Dell H220P-01
Dell Optiplex 745 SFF
Dell TD570
Dell XPS 200
Dell R8038
Dell NPS-220BB A
Dell N220P-01
Dell Optiplex GX520 SFF
Dell Optiplex GX620 SFF
Hipro HP-L2206F3P1
Hipro HP-L2757F3P
Liteon HP-L2206F3P
Liteon HP-L2206F3P1
Newton NPS275BB A
Newton NPS-220BB A
Newton N220P-01
