500 Watt ATX Power Supply

Product Number 500WPS24

500-watt-atx-power-supply-20-pin-to-24-pin-adapter

$28.90

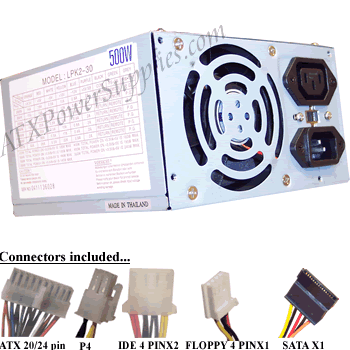

The power supply above comes with the connectors shown. If you need additional connectors you may add from the list below:

view image
view image
view image
view image
view image
view image
view image
Having trouble making a selection? See our article on Choosing a Power Supply.

Key Features:

  1. Selectable 20 pin or 24 pin atx connector adapter
  2. Silent, whisper quiet operation
  3. Full Support for P4 & AMD CPU's

Product Description:

This 500 watt atx power supply performs with whisper quiet operation. The unique atx connector on this power supply allows you to use it for both 20 pin and 24 pin atx connector configurations. The built in 20 pin to 24 pin adapter for your atx connector comes in handy. This power supply fully supports P4 and AMD CPU's.


Easily converts from 20 to 24 pin atx connector to adapt to your application... an excellent 20 pin to 24 pin atx connector adapter.

Looking to upgrade? Try this power supply. It's 630 watts and provides needed power when upgrading video cards or adding devices to your computer.

Technical Specs:

  • ATX Form factor
  • 6.00" Wide X 3.25" Tall X 5.5" Deep
  • One ATX 2.03 connector (20 pin or 24 pin)
  • One 12V connector for P4 motherboards
  • Four IDE 4 PIN connectors
  • One SATA connector
  • One Floppy 4 PIN connector

Additional Specifications:

  Output

500 Watts

ORANGE +3.3V 30A
RED +5V 38A
WHITE -5V 0.5A
YELLOW +12V 20A
BLUE -12V 0.8A
PURPLE +5V SB 2A
