Antec Basiq 550 Watt Power Supply BP550 PLUS

Product Number BP550PLUS

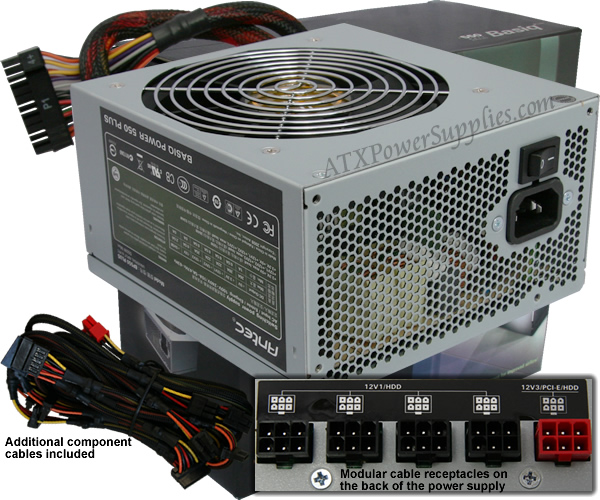

Antec Basiq 550 Watt Power Supply BP550 PLUS
Click to enlarge
$82.60

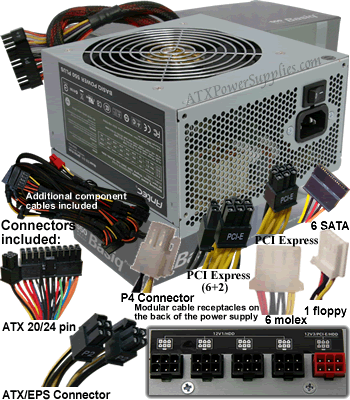

The power supply comes with the connectors shown. If you need additional connectors you may add from the list below:
view image
view image
view image
view image
view image
view image
view image
view image
view image
view image
view image
view image
view image
view image
view image
view image

ATXPowerSupplies.com is safe to buy from.
BP550PLUS
Replaces the following computer power supplies:
Antec BP550 PLUS
FSP Basiq BP550 PLUS


Key Features:

  1. 550 watts
  2. Physical on/off switch
  3. Three 12 volt rails
  4. Overvoltage protection
  5. MTBF: 100,000 hours

Product Description:

The Antec Basiq BP550 PLUS is anything but basic. It is a 550 watt power supply with a full modular cable management system. It has a life expectancy of 11 years, and a big, quiet 120mm cooling fan for great air flow. There are three 12 volt rails that can flow a total of 69 amps. Thanks to the six molex connectors, six sata connectors, and a floppy connector you can power up to thirteen devices with this power supply right out of the box. And with even more connectors like pci express and eps, you can have assured compatibility with just about any system where you put the BP550 to work. This is discontinued and no longer available.

Need more info? Download the Antec Basiq BP430 User's Manual

Technical Specs:

  • 5.9" Wide X 3.4" Tall X 6.1" Deep
  • One ATX connector (20/24 pin)
  • One P4 connector
  • One PCI Express connector
  • One PCI Express (6+2) connector
  • ATX/EPS connector
  • Six Molex connectors
  • One floppy connector
  • Six SATA connectors
  • Certifications: UL, CE, TÜV, CB, FCC, CCC, C-TICK
Output Max. Load
+5Vsb 2.5A
-12V 0.5A
+12V1 22A
+12V2 22A
+12V3 25A
+5V 26A
+3.3V 28A
