Athena Power

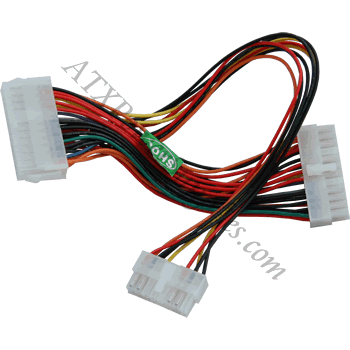

ATX 24 Pin to Dell 24 + 16 Pin Adapter
- Power supply specialists since 2004 · secure checkout
- Shipping & returns policy
- Not sure it fits? Call (800) 458-1606, Mon–Fri 8am–5pm
Key Features
- Converts ordinary ATX 24 Pin Connector to Dell Proprietary 24 + 16 Pin Connector
Product Description
This adapter converts your ordinary 24 pin atx connector to the proprietary 24 pin + 16 pin proprietary connectors. You willl notice the Dell 24 pin proprietary connector is missing two pins and has different voltages on some pins than the ordinary 24 atx connector. The Dell proprietary 16 pin connector is populated with 9 pins in different spots. This purpose of this adapter is to allow you to use an ordinary atx power supply with a 24 pin atx connector the Dell computers listed below. If you get our 20 to 24 pin atx converter you can use an ordinary atx power supply with a 20 pin atx connector in the Dell systems listed.
Technical Specs
- About 12 inches long
- Weight: 0.1500 lb
Video of ATX 24 Pin to Dell 24 + 16 Pin Adapter
