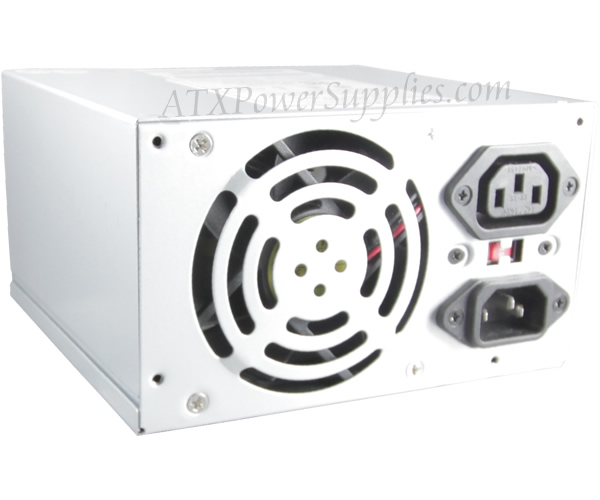

AT Power Supply 300 Watt SPI-300G

AT Power Supply 300 Watt SPI-300G

$569.99

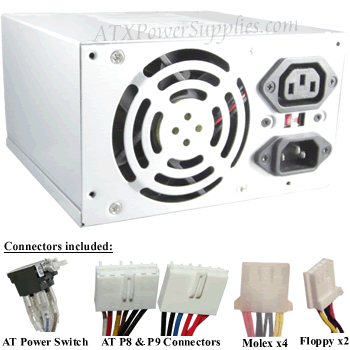

The power supply comes with the connectors shown. If you need additional connectors you may add from the list of options:

view image view image view image view image view image view image view image view image view image view image view image view image view image view image view image view image


Key Features:

  • 300 watts
  • Physical on/off switch
  • 120/240V input
Product Description:

This 300 watt AT style power supply is typically found in older computer systems, or most systems where a physical on/off switch is necessary. Control systems at plants and refineries, kiosks at shopping malls, and gaming arcades are where you will find AT power supplies powering all of these devices. This 300 watt model SPI-300G replaces pretty much any AT power supply, adding extra years of service by providing power to your electronic platform.

Technical Specs:

  • AT Form factor
  • 5.9" Wide X 3.4" Tall X 5.5" Deep
  • One P8 Connector
  • One P9 Connector
  • Four Molex Connectors
  • Two Floppy Connectors
  • UPC Code: 677808610931
  • Weight: 3.40 LBS.
  • 3.4000
  • UPC: 677808610931
OutputMax. Load
-12V 0.5A
+12V 12A
+5V 30A
-5V 0.5A
SPI-300G replaces the following computer power supplies:

  •   Acer Aspire 5133LK
  •   AGI BPS-2001-4U
  •   AGI BPS-2504-4U
  •   AGI PS-250W
  •   Astec 190170-01
  •   Astec 213-00013
  •   Astec 628699-001
  •   Astec 73-610-001
  •   Astec 73-610-016
  •   Astec PSE5-115-CI-001
  •   Astec PSE5-115-CI-016
  •   Astec SA145-3408
  •   Astec SA201-3438
  •   Astec SA201-3439
  •   Astec SA201-3440
  •   Astec SA201-3455
  •   Astec SA301-3405
  •   Astec SA302-3505
  •   Athena Power AP-AT30
  •   Athena Power AP-AT35
  •   Athena Power AP-AT40
  •   Athena Power AT-30
  •   Bestec BPS-2504-4TU
  •   Bestec BPS-2994-4U
  •   Compaq 213928-001
  •   Compaq 213929-001
  •   Compaq 213976-021
  •   Compaq 214969-001
  •   Compaq 214978-001
  •   Compaq PS-5151-4A
  •   Compaq PS-5151-4C
  •   Compaq PS2021
  •   Compaq Presario 5695
  •   Deer DR-230C
  •   Delta DPS-145PB-38 A
  •   Delta DPS-145PB-38 A Rev: 01
  •   Delta DPS-200PB-8
  •   DFI DPS-200D
  •   DVE DPS-200D
  •   DVE DSP-1454C
  •   DVE DSP-1454P
  •   DVE DSP-1514P
  •   Emacs HG2-6300P (AT)
  •   Enermax E251P-V
  •   Enermax E251P-V
  •   FSP 9PP2500201
  •   FSP 9PP2500203
  •   FSP SPI-250G
  •   FSP SPI-300G
  •   G-Power 190308-01
  •   G-Power GP-4150PB
  •   G-Power GP-4200PB
  •   Gateway 6500010
  •   Gateway Aslan 6500010
  •   Hipro HP-200 PPGN
  •   Hipro HP-230PPFN
  •   IBM 52G7955
  •   IBM 92F0411
  •   Kingspao KP-220TUL
  •   Kingspao MPS-6220T
  •   Liteon PA-4221-3A1
  •   Liteon PS-5151-4A
  •   Liteon PS-5151-4C
  •   Macase MG-250EP
  •   Max Power KP-220TUL
  •   Max Power MPS-6220T
  •   NEC 158-050684-002
  •   NEC 190170-01
  •   NEC 213-00007
  •   NEC SA302-3505-1276
  •   Packard Bell 190050
  •   Packard Bell DSP-1454P
  •   Packard Bell PB150C
  •   Power Switch Corp PS-AT-200CC
  •   Power Tronic PTA-4200CF
  •   Power Tronic SK-4145DE
  •   PowerMan HP-230PP3
  •   PowerWin PW-250APSA
  •   Ram Technologies PFC230PC
  •   Seventeam ST-300WHT-P
  •   Sparkle 9PP2500201
  •   Sparkle 9PP2500203
  •   Sparkle SPI-250G
  •   Sparkle SPI-250G-B
  •   Sparkle SPI-300G
  •   Sparkle SPI-300G-B
  •   StarTech AG-230T
  •   StarTech PS2POWER230
  •   Topower TOP-250SS
  •   Topower TOP-250SS-CE
  •   Touch MU-250P
