Linkworld
300 Watt ATX Power Supply - UL Listed
- Power supply specialists since 2004 · secure checkout
- Shipping & returns policy
- Not sure it fits? Call (800) 458-1606, Mon–Fri 8am–5pm
Key Features
- Internal relay & external switch for switching on/off
- Selectable 110V or 220V switch
- Full Support for P4 & AMD CPUs
Easily converts from 20 to 24 pin atx connector to adapt to your application... an excellent 20 pin to 24 pin atx connector adapter.
Product Description

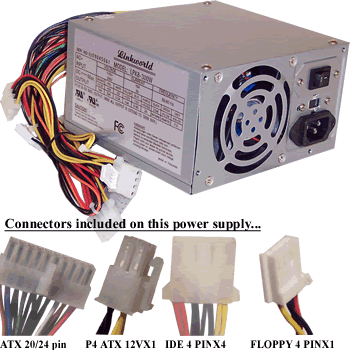

This 300 Watt power supply from ATXPowerSupplies.com is UL Listed. Internal relay inside the power supply is actuated by the power switch connected to your motherboard. Also this 300 Watt ATX power supply has an external switch. As you can see by the connectors this is an AMD and P4 compatible power supply. This is DISCONTINUED so if you order this part, the 500Watt UL version of the LPZ18 will ship out as a compatible replacement. Only order if you are OK w. this upgrade substitution for this part number.
Technical Specs
- ATX Form factor
- 5.75" Wide X 3.25" Tall X 5.5" Deep
- One ATX 2.03 connector (20 and 24 pin)
- One 12V connector for P4 motherboards
- Four IDE 4 PIN connectors
- One Floppy 4 PIN connector
- Weight: 3.6600 lb
- UPC: 807479313804
Output
| Output | Max. Load |
|---|---|
| +3.3V | 14A |
| +5V | 20A |
| +12V | 13A |
| -12V | 0.8A |
| +5VSB | 2A |
Not sure this is the right power supply?
Check the cross reference or call us Monday–Friday, 8am–5pm.
