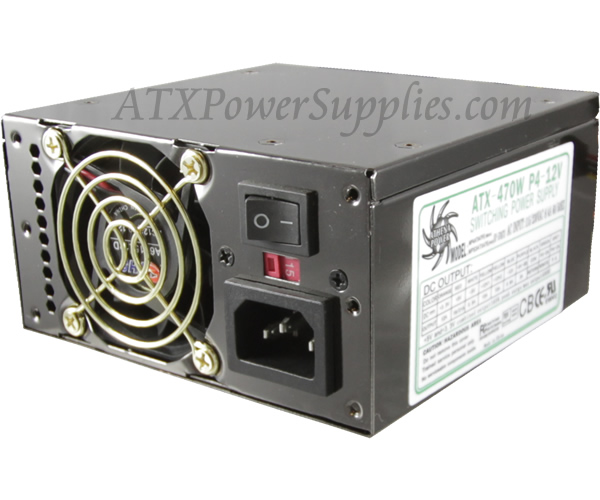

Athena AP-MP4ATX47FE 470 Watt Micro ATX Power Supply
- Power supply specialists since 2004 · secure checkout
- Shipping & returns policy
- Not sure it fits? Call (800) 458-1606, Mon–Fri 8am–5pm
Key Features
- 470 Watts
- -5V circuit and HP video to support older systems
- Dual cooling fans
- Dual 12V rails
- Supports Intel Core 2 Quad, AMD 64 Phenom, ATI Radeon, and Nvidia GeForce UPC Code: 821524014720
- UPC Code: 821524014720
- Weight: 2.8500 lbs
Product Description
Micro atx power supplies do not get much more powerful than this dual rail Athena model AP-MP4ATX47FE. This power supply has 470 watts of power and is compatible with both older computers and newer ones. The -5V circuit and the hp video connector provide compatibility for older systems while the pci express and EPS-12v leads ensure that you are ready for i3, i5, and i7. If you are in the computer repair business, this power supply is a good one to have on your shelf because it is low cost, and it replaces most any micro atx power supply. This is currently out of stock, so we will send out the AP-MP4ATX40- 400 Watt instead.

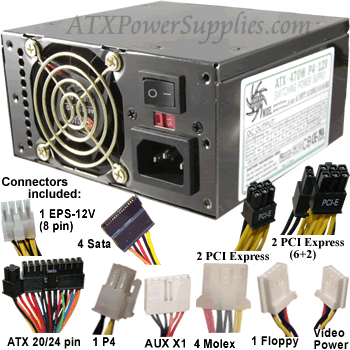

Technical Specs
- 5" Wide X 2.5" Tall X 4.75" Deep
- One ATX Connector (20/24 pin)
- One EPS-12V 8-Pin Connector
- One P4 Connector
- Two PCI Express Connectors (6-pin)
- Two PCI Express Connectors (6+2 pin)
- Four Molex Connectors
- Four Sata Connectors
- One Floppy Connector One HP Video Connector One HP Video Connector
- One HP Video Connector
- Weight: 2.8500 lb
- UPC: 821524014720
Output
| Output | Max. Load |
|---|---|
| +3.3V | 12A |
| -12V | 0.8A |
| +12V | 13A |
| +12V2 | 13A |
| +5V | 19A |
| -5V | 0.5A |
| +5Vsb | 3A |
AP-MP4ATX47FE replaces these power supplies
32 compatible models
- Astec ATX202-3515
- Astec ATX202-3515-1412B
- Astec ATX202-3545
- Athena AP-MP4ATX40
- Athena AP-MP4ATX47FE
- Delta DPS-300AB-9
- FSP 9PA2700126
- FSP FSP200-50SNV
- FSP FSP270-50SNV
- FSP FSP300-60GLS
- FSP FSP300-60GLS-MJR
- FSP FSP300-60GNV
- FSP FSP300-62GLS
- Gateway 6500184
- Gateway 6500308
- Gateway 6500400
- Gateway Performance 500
- Gateway Performance 750
- Gateway 2000 G6-233
- HP Pavilion 531W
- Newton 79F3391
- Newton NPS-200PB-56C
- Newton NPS-200PB-96D
- PowerMan FSP270-50SNV
- PowerMan FSP300-60GLS
- PowerMan FSP300-60GNV
- Sparkle 9PA2700126
- Sparkle FSP200-50SNV
- Sparkle FSP270-50SNV
- Sparkle FSP300-60GLS
- Sparkle FSP300-60GLS-MJR
- Sparkle FSP300-60GNV
