530 Watt ATX Silent Quiet Power Supply

530 Watt ATX Silent Quiet Power Supply

DISCONTINUED

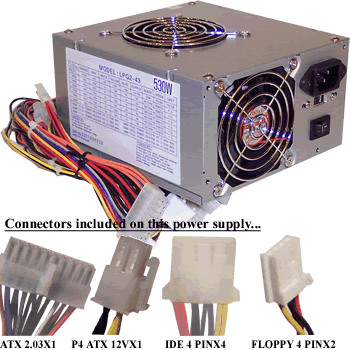

The power supply comes with the connectors shown. If you need additional connectors you may add from the list of options:

view image view image view image view image view image view image view image view image view image view image view image view image view image view image view image view image


Key Features:

  • Internal relay & external switch for switching on/off
  • Selectable 110V or 220V switch
  • Full Support for P4 & AMD CPUs
  • Three Fans
  • Extremely quiet power supply
Product Description:

This 530 Watt power supply from ATXPowerSupplies.com is an extremely quietly operating power supply. Compare this power supplies to those that are well over $100!. Internal relay inside the power supply is actuated by the power switch connected to your motherboard. Also this 530 Watt ATX power supply has an external switch and three cooling fans. As you can see by the connectors this is an AMD and P4 compatible atx power supply.

Technical Specs:

  • ATX Form factor
  • 5.75" Wide X 3.25" Tall X 6.0" Deep
  • One ATX 2.03 connector
  • One 12V connector for P4 motherboards
  • Four IDE 4 PIN connectors
  • Two Floppy 4 PIN connectors
  • 3.8500
OutputMax. Load
+3.3V 30A
+5V 50A
-5V 1A
+12V 24A
-12V 1A
+5Vsb3A
