Antec TruePower TP-650 650 Watt Power Supply

Product Number TP-650

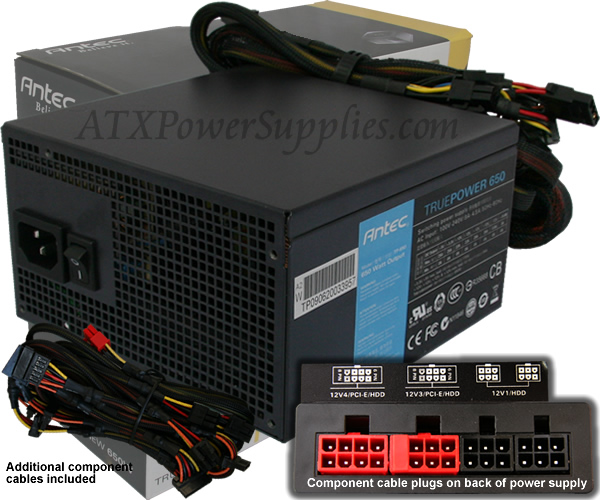

Antec TruePower TP-650 650 Watt Power Supply
Click to enlarge
The Antec TP-650 is discontinued. Please choose from our other power supplies.
ATXPowerSupplies.com is safe to buy from.
TP-650
Replaces the following computer power supplies:
Antec TP-650
Antec TruePower TP-650


Key Features:

  1. 650 continuous watts
  2. Physical on/off switch
  3. Four 12 volt rails
  4. Hybrid cable management
  5. 80 PLUS Bronze certified

Product Description:

The Antec TruePower TP-650 operates at a continuous 650 watts. Each of the four 12 volt rails can operate constantly at 22 amps while having an over-current protection set at 40 amps. Even though the TP-650 is powerful, it is still highly efficient thanks to its 80 PLUS Bronze certification. A hybrid modular cable system (yes the cables are included) allows you to use only the cables you need thus improving air flow and reducing clutter. And do not worry yourself about what connectors you might need because the Antec TruePower TP-650 comes with just about every connector known to computers!

Need more info? Download the Antec TruePower TP-650 User's Manual

Need more info? Download the Antec TruePower TP-650 Product Flyer

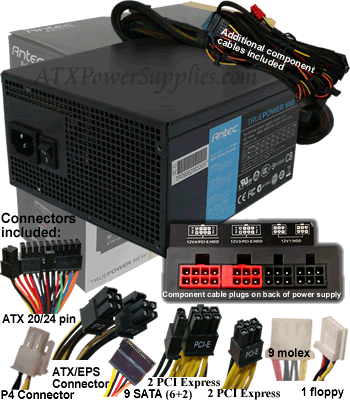

Technical Specs:

  • 5.9" Wide X 3.4" Tall X 5.9" Deep
  • One ATX connector (20/24 pin)
  • One P4 connector
  • Two PCI Express connectors
  • Two PCI Express (6+2) connectors
  • One 8-Pin ATX/EPS connector
  • Nine Molex connectors
  • One floppy connector
  • Nine SATA connectors
  • Certifications: UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick, BSMI
Output Max. Load
+5Vsb 3A
-12V 0.8A
+12V1 22A
+12V2 22A
+12V3 25A
+12V4 25A
+5V 25A
+3.3V 25A
